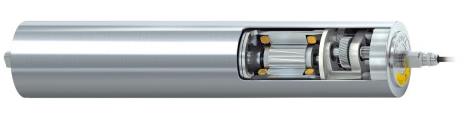

Drum Motor 165i
Product Description |
Characteristics |
- Salt-water-resistant aluminium bearing housings
- 3-phase AC induction motor
- Dual voltage
- Integral motor protection
- Steel-hardened helical spur gear
|
- Low noise
- Maintenance-free
- Lifetime lubricated
- Reversible
- Reinforced shaft for SL above 1000 mm
|
Technical Data
Motor data |
| Motor type |
Asynchronous squirrel cage motor, IEC 34 (VDE 0530) |
| Insulation class of motor windings |
Class F, IEC 34 (VDE 0530) |
| Voltage |
230/400 V ±5% (IEC 34/38)
Most international voltages and frequencies can be supplied on request |
| Frequency |
50 Hz |
| Internal shaft sealing system |
Double-lipped, FPM |
| Protection rate |
IP66 |
| Thermal protection |
Bi-metal switch |
| Operating modes |
S1 |
| Ambient temperature |
+5 to +40°C |
| Ambient temperature for applications with positive drive belts, or without belts |
+5 to +25°C |
| Rated power/td>
| 0.306 to 2.200 kW |
| Rated velocity of the shell |
0.084 to 2.527 m/s |
| Rated torque of drum motor |
28.1 to 365.2 Nm |
| Max. shell length SL |
1,750 mm |
All data and values refer to 50 Hz operation.
(© INTERROLL AG) |
|
